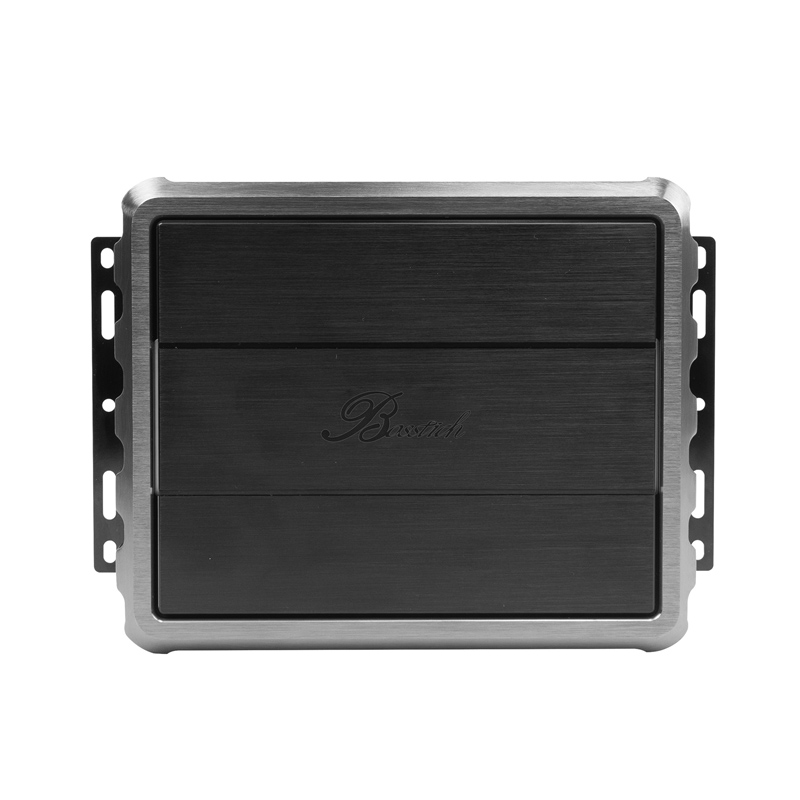

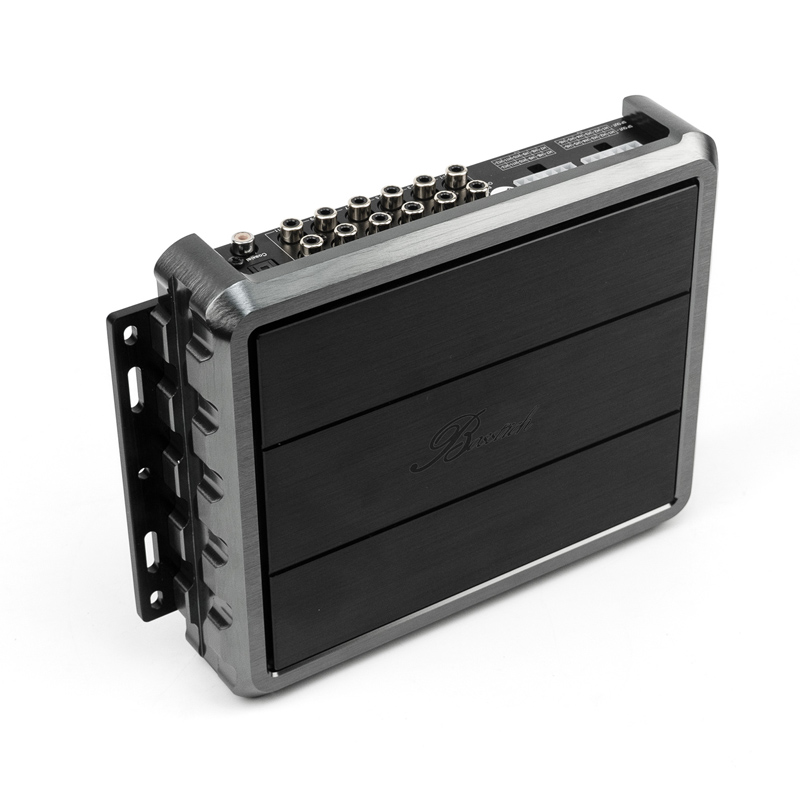

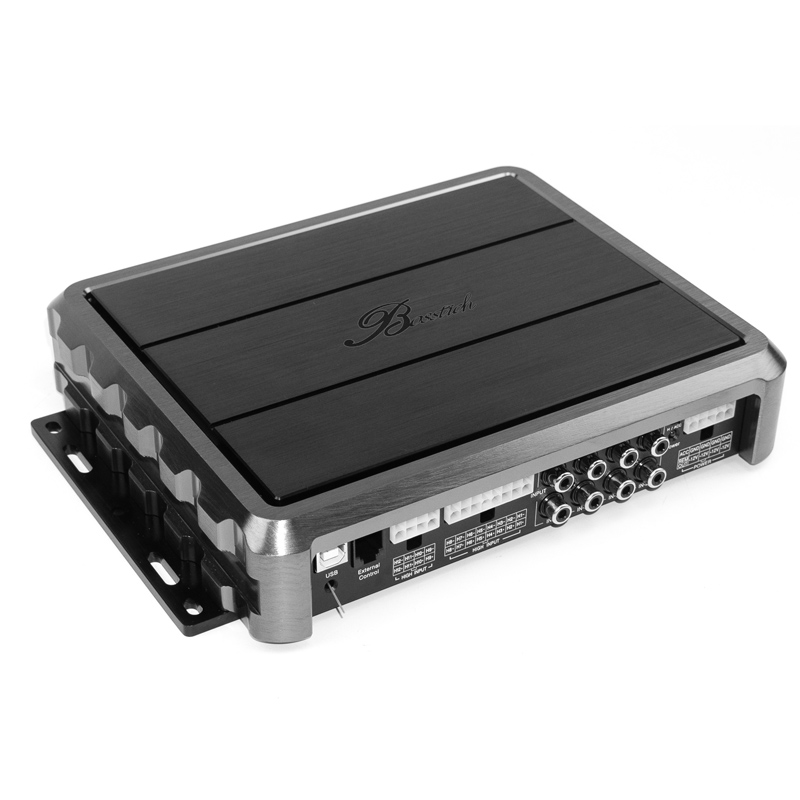

Universal DSP amplifier

12CH 1120W DSP Amplifier

12CH universal Car DSP Amplifier

Digital Amplifier IC Infineon MA-12070 x 7

Input : Optical input x 1 ; Coaxial input x 1; RCA input x 8;

Highlevel input x 12;RCA output x 12; Highlevel output x 12

-160 W X 2CH (CH11 & CH12)

- 80W X 4CH (CH7-CH10)

CH7 & CH8 ( support bridge connected into one CH by switch button )

CH9 & CH10 ( support bridge connected into one CH by switch button )

- 80W X 6CH ( CH1-CH6) support bridge connected into 3 CH by manual

Output Power Max 160 Watts Per channel	-4 Ohms	Sample Rate	96 kHZ
Input	Optical input x 1 ; Coaxial input x 1; RCA input x 8; Highlevle input x12	DSP Type	Audio Signal Processor
Input Sensitivity	Highlevel 10-16 Volts	Signal Converters	A/D :T D/A :T1I
OutPut	Speaker output x 12 CH; RCA output x 12CH	Signal - to - noise ratio digital input	112dB (A -weighted)
Output Voltage RCA/ Cinch	6 Volts RMS	Signal -to -noise ration analog input	107dB (A -weighted)
Frequency Response	20Hz-22000Hz	Distortion (THD)	<0.006%
DSP Resolution	32/40 Bit Floating Point	Damping Factor	>100
DSP Power	450MHz ( 1.2 billion MAC operation /Second)	Operating Voltage	9.5-16V
Quicscent Current	180mA	Fuse	35A
