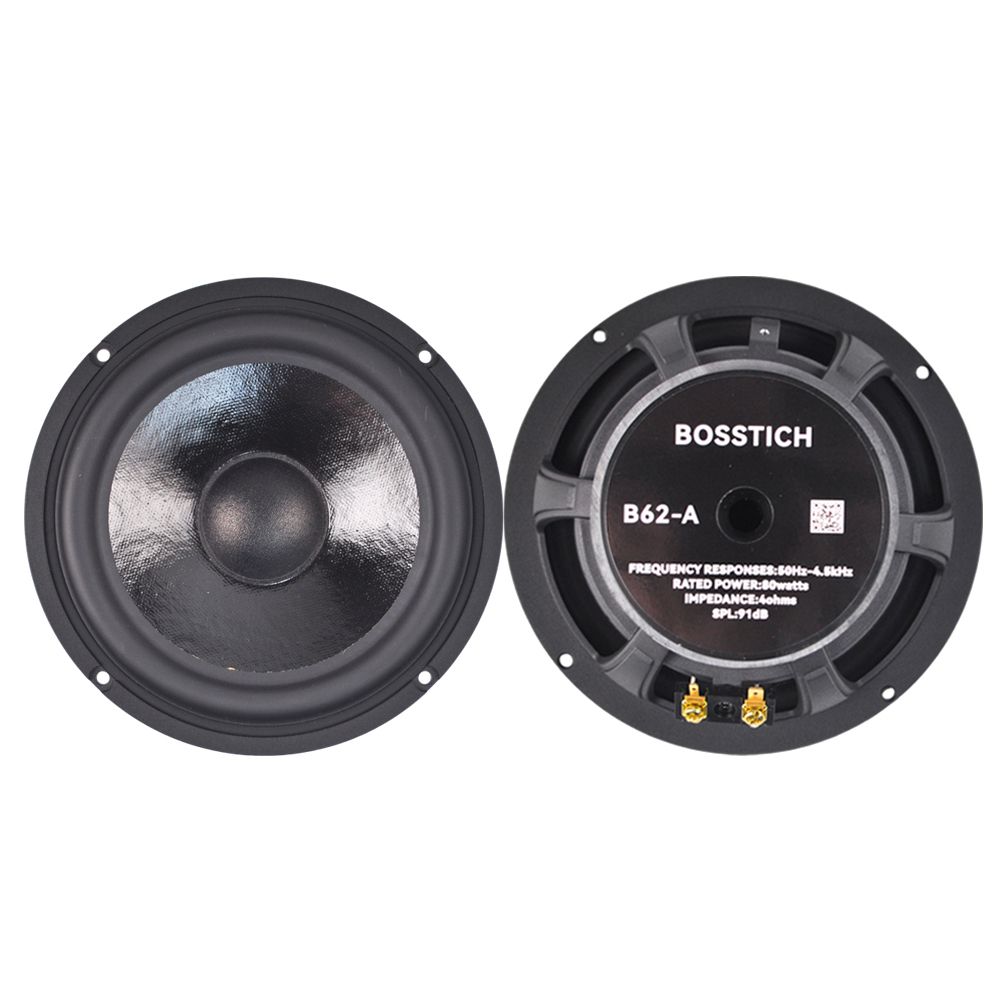

B62-A Bass:

Material of Speaker ----------------Paper Pulp

Nominal Impedance ---------------4ohm

Recommended Frequency  Range --------50Hz-4.5kHz

Short Term Power Handling ------------100W

Long Term Power Handling ------------80W

Sensitivity 1V/m---------------91dB

Voice Coil Diameter-------------25.5mm

Voice Coil  Height -----------12mm

Air Gap Height ----------------6mm

Linear Coil Travel(p-p)---------------8mm

Magnetic  Weight-------------------431.97g

DC  Resistance of Voice Coil Re------------2.8ohm

Force Factor BI------------------------4.533T-M

Free Air Resistance Fo----------------51Hz

Equivalent Volume Suspension Vas --------36.643L

Mechanical Q Factor  Qms----------3.164

Electrical Q Factor Qes------------0.432

Total Q Factor  Qts------------0.308

Mms--------------------------9.780g

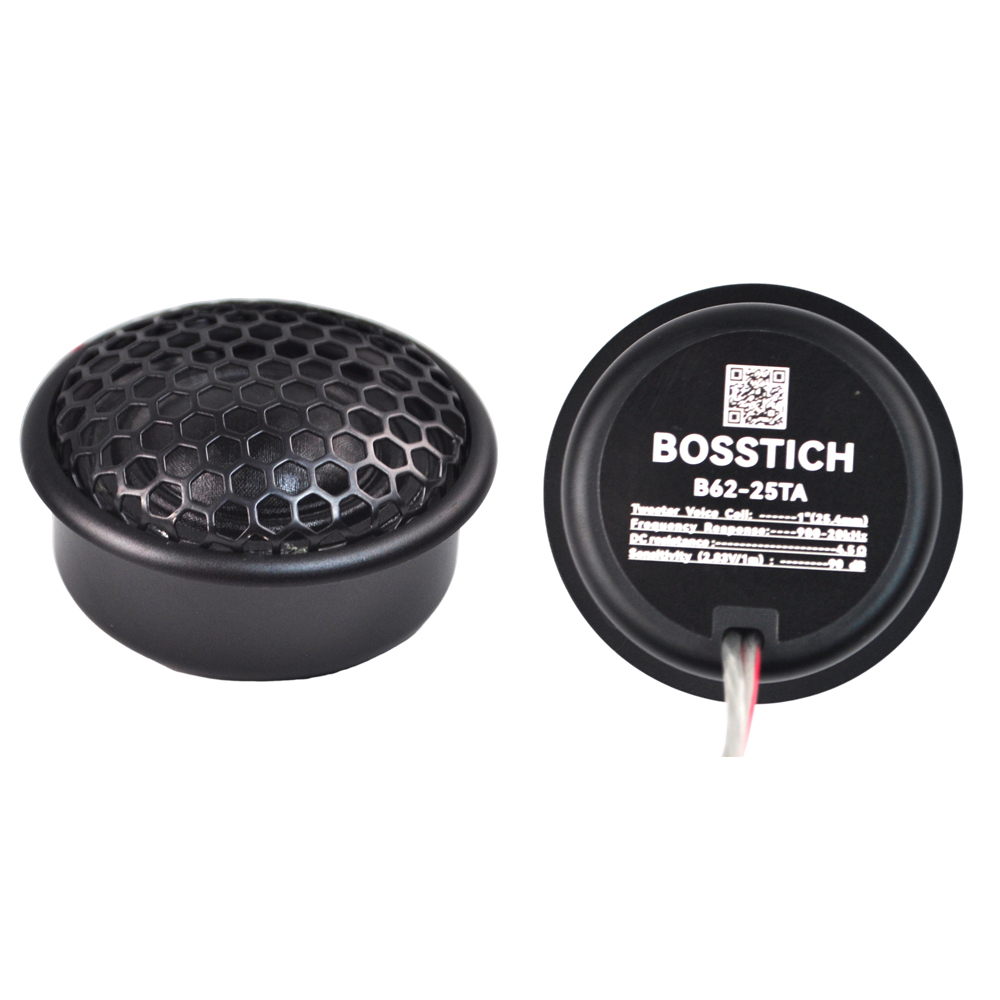

B62-25TA- Tweeter

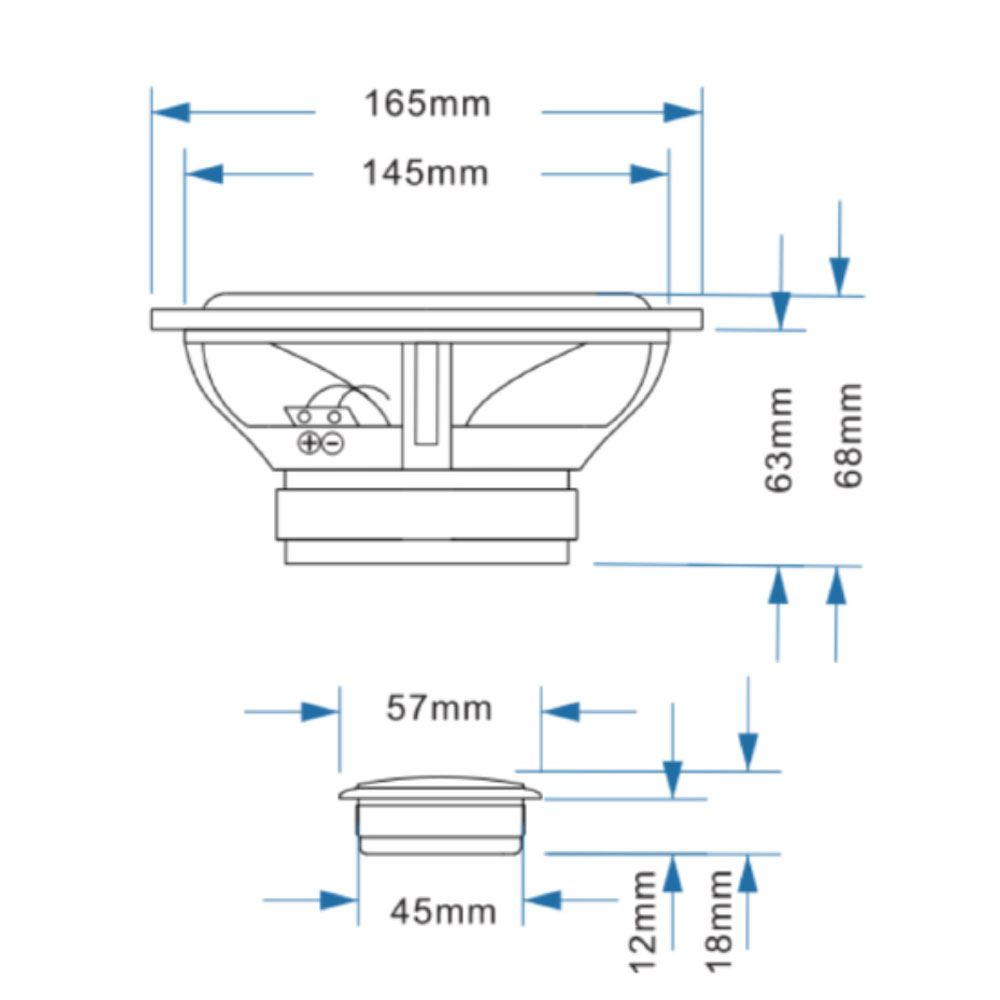

Diameter ------------57mm

Nom Power -------------10 Watts

MCR. Power -----------20 Watts

Maximum Music Power-------50 Watts

SPL ( 2.83V/m) ---------------90dB

Frequency Response -----------900Hz-20kHz

B62-25AT Tweeter Coil Diameter --------25.4mm

Coil Material ------------K.S.V

Diaphragm Material ---------Silk

Magnet Diameter---------36mm

Mounting Diameter -----------45mm

Installation Depth ---------------20mm

Fs--------------------------------900Hz
