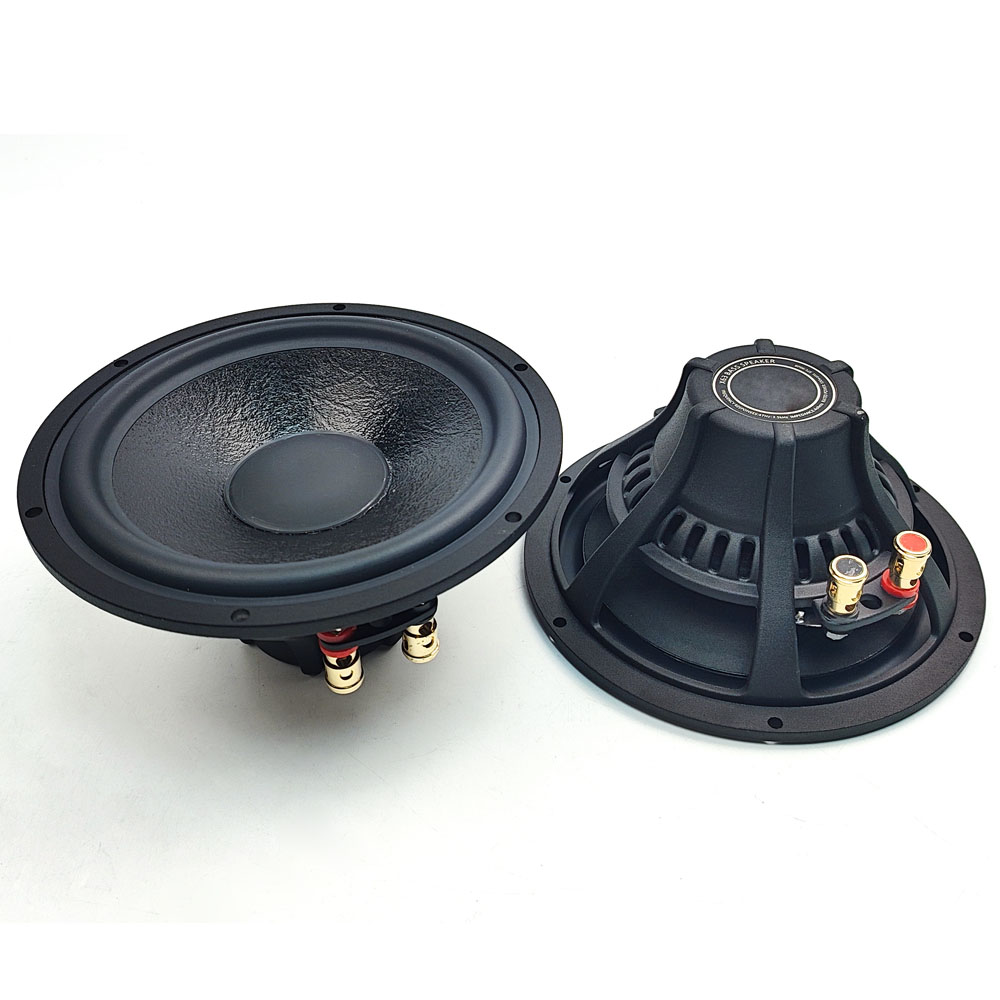

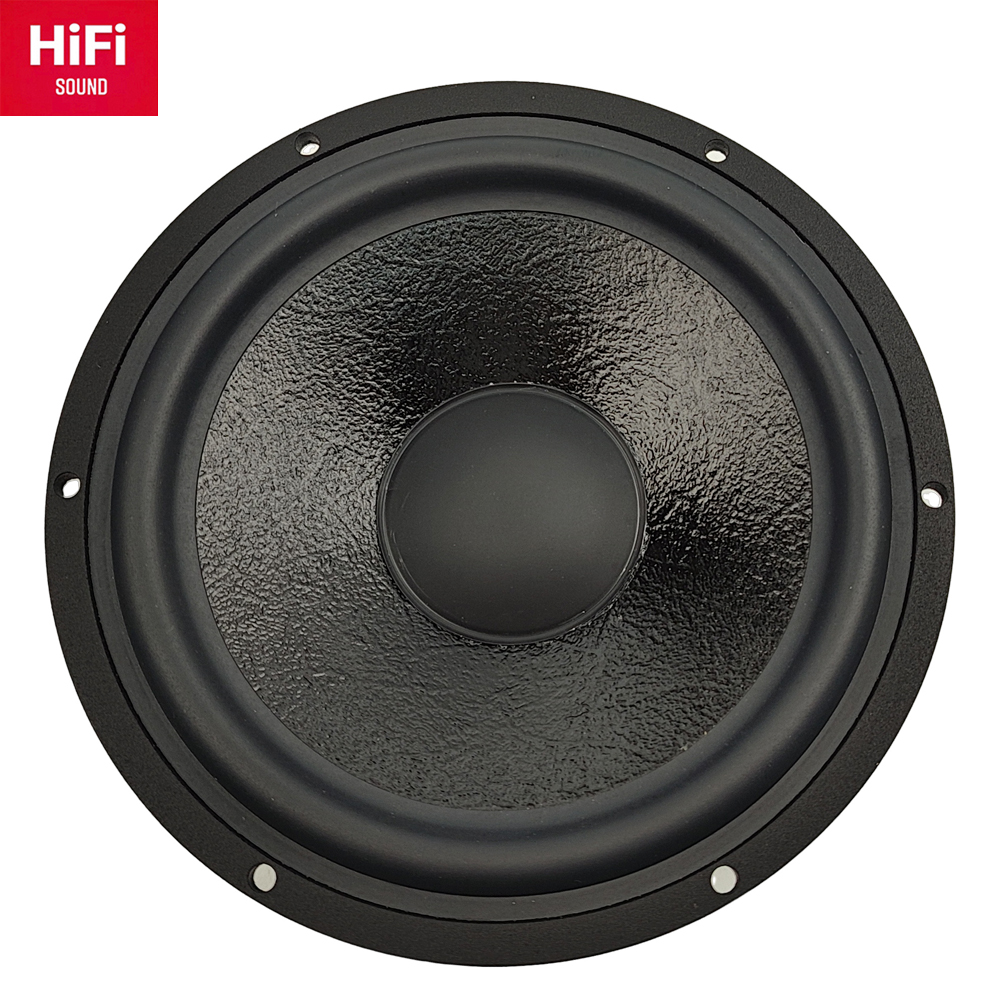

X63 Bass:

Material of Speaker ----------------Paper Pulp

Nominal Impedance ---------------4ohm

Recommended Frequency  Range --------47Hz-3.5kHz

Short Term Power Handling ------------300W

Long Term Power Handling ------------100W

Sensitivity 1V/m---------------87.3dB

Voice Coil Diameter-------------38.5mm

Voice Coil  Height -----------18mm

Air Gap Height ----------------8mm

Linear Coil Travel(p-p)---------------12mm

Magnetic  Weight-------------------563.72g

DC  Resistance of Voice Coil Re------------4ohm

Force Factor BI------------------------6.580T-M

Free Air Resistance Fo----------------40Hz

Equivalent Volume Suspension Vas --------23.02L

Mechanical Q Factor  Qms----------7.301

Electrical Q Factor Qes------------0.433

Total Q Factor  Qts------------0.409

Mms--------------------------18.432g

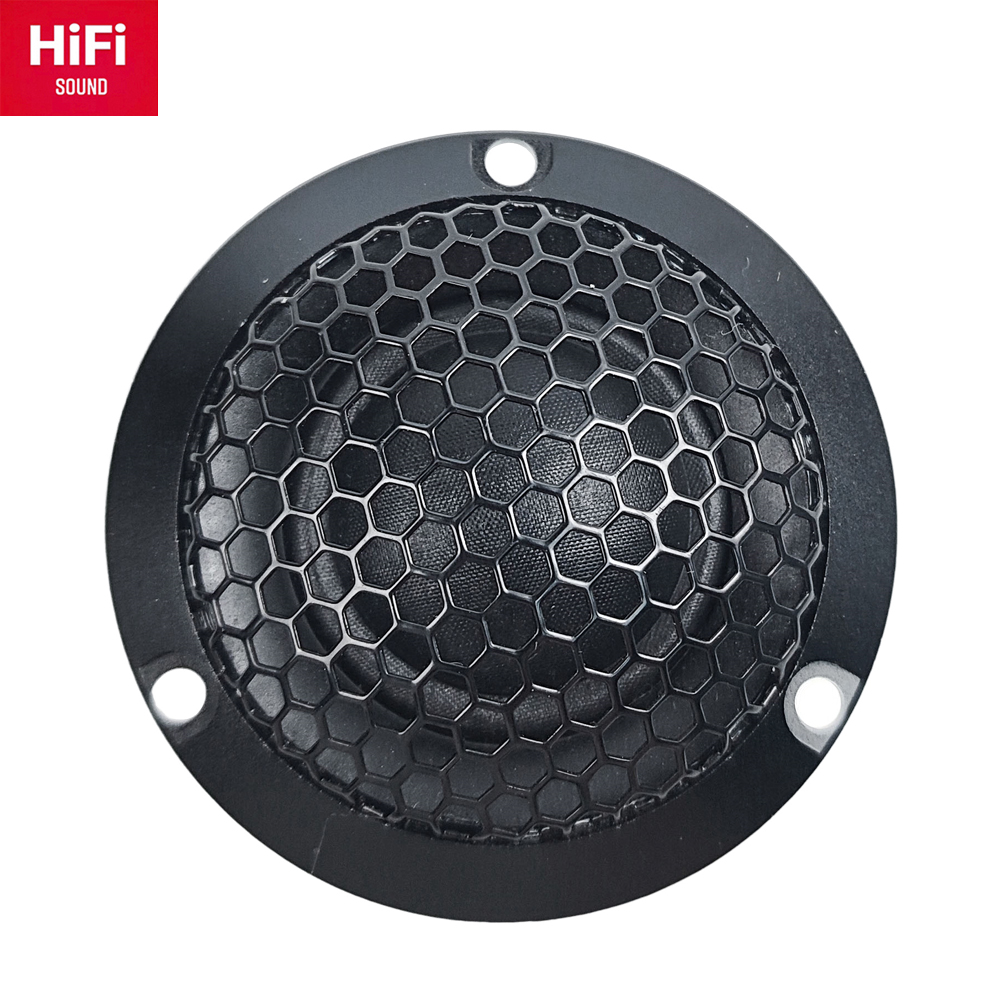

RP6AT-25- Tweeter

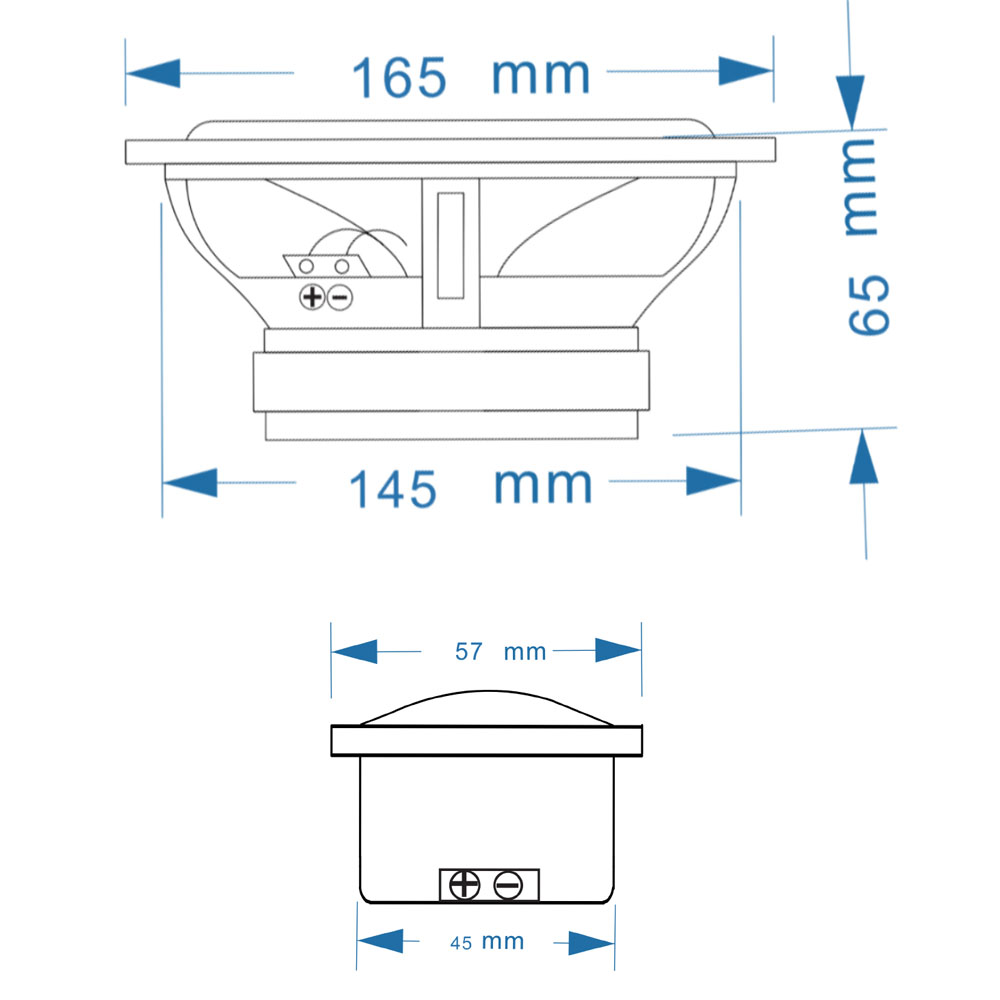

Diameter ------------57mm

Nom Power -------------10 Watts

MCR. Power -----------20 Watts

Maximum Music Power-------50 Watts

SPL ( 2.83V/m) ---------------88 dB

Frequency Response -----------900Hz-23kHz

B62-25AT Tweeter Coil Diameter --------25.4mm

Coil Material ------------K.S.V

Diaphragm Material ---------Ceramics +ALR

Magnet Diameter---------36mm

Mounting Diameter -----------45mm

Installation Depth ---------------20mm

Fs--------------------------------900Hz
