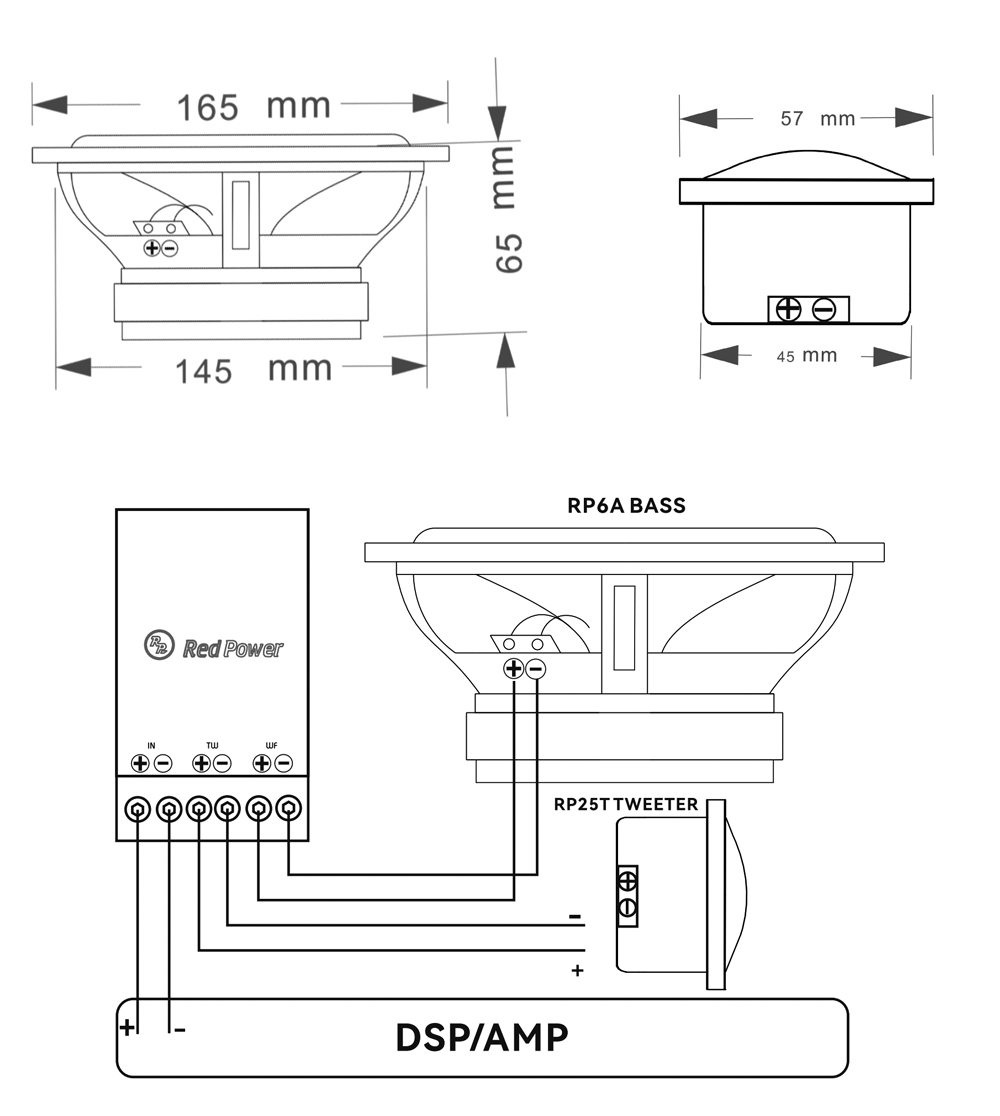

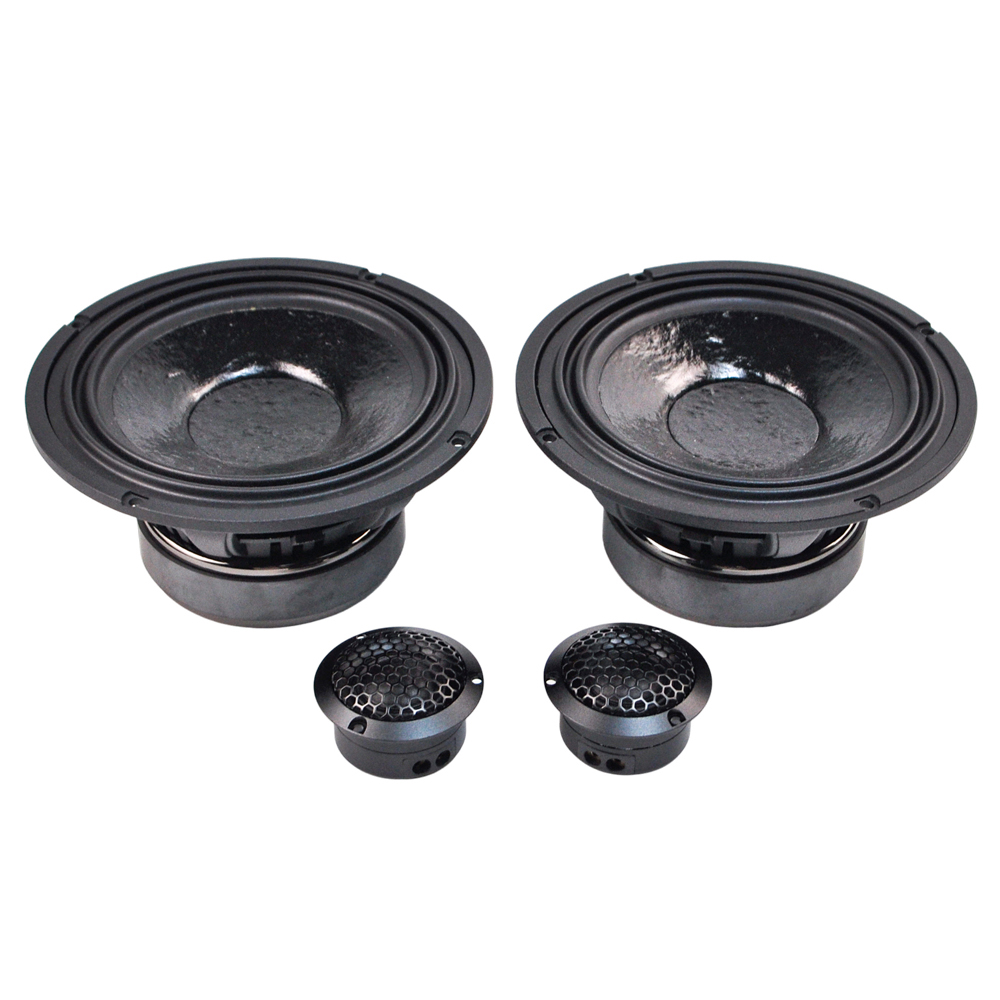

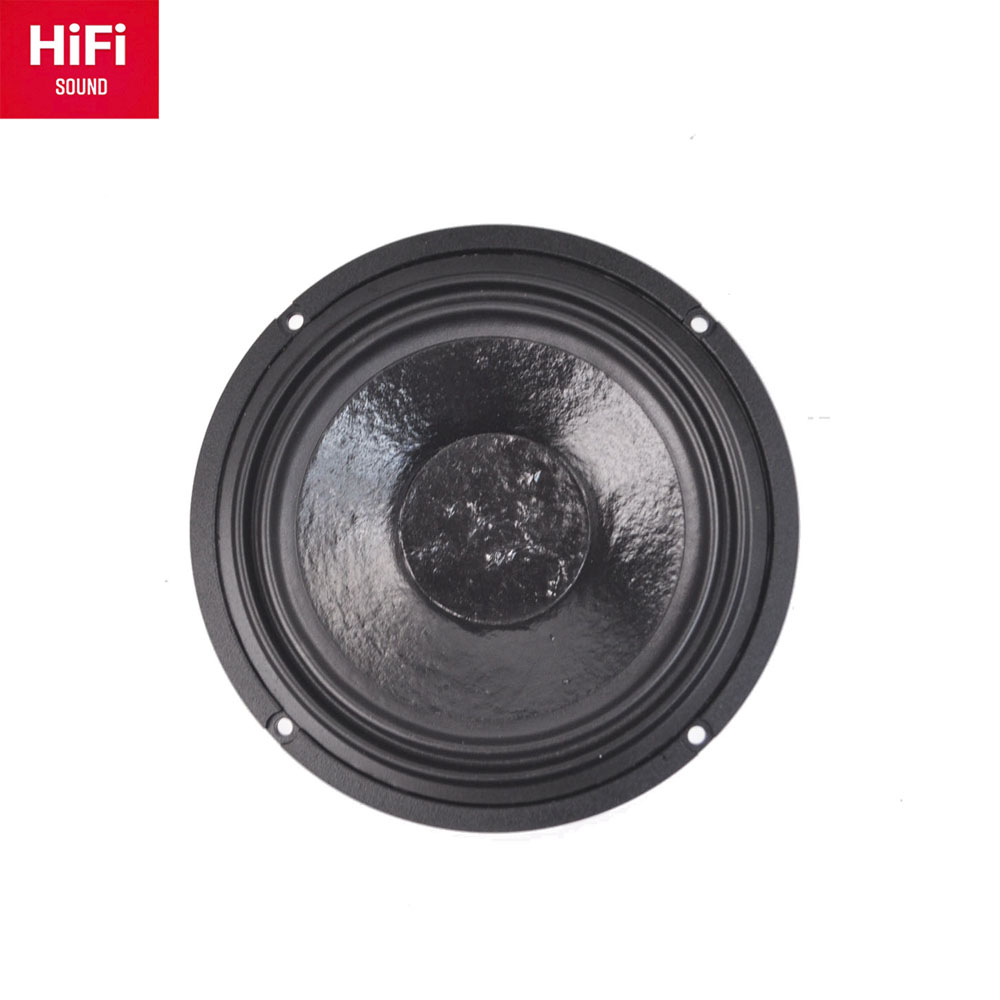

B6A Bass:

Material of Speaker ----------------Paper Pulp

Nominal Impedance ---------------4ohm

Recommended Frequency  Range --------43Hz-3.5kHz

Short Term Power Handling ------------300W

Long Term Power Handling ------------100W

Sensitivity 1V/m---------------90dB

Voice Coil Diameter-------------30.5mm

Voice Coil  Height -----------16mm

Air Gap Height ----------------6mm

Linear Coil Travel(p-p)---------------11mm

Magnetic  Weight-------------------563.72g

DC  Resistance of Voice Coil Re------------3.6ohm

Force Factor BI------------------------6.26T-M

Free Air Resistance Fo----------------50Hz

Equivalent Volume Suspension Vas --------14.96L

Mechanical Q Factor  Qms----------8.874

Electrical Q Factor Qes------------0.510

Total Q Factor  Qts------------0.482

Mms--------------------------15.896g

RP6AT-25- Tweeter

Diameter ------------57mm

Nom Power -------------10 Watts

MCR. Power -----------20 Watts

Maximum Music Power-------50 Watts

SPL ( 2.83V/m) ---------------88 dB

Frequency Response -----------900Hz-23kHz

B62-25AT Tweeter Coil Diameter --------25.4mm

Coil Material ------------K.S.V

Diaphragm Material ---------Ceramics +ALR

Magnet Diameter---------36mm

Mounting Diameter -----------45mm

Installation Depth ---------------20mm

Fs--------------------------------900Hz
