Mark Levision Amplifier

  • 12 CH DSP Amplifier
  • 64W X 12
  • Pluging Play
  • Supporting IEBUS
  • Product description:
  • INQUIRY

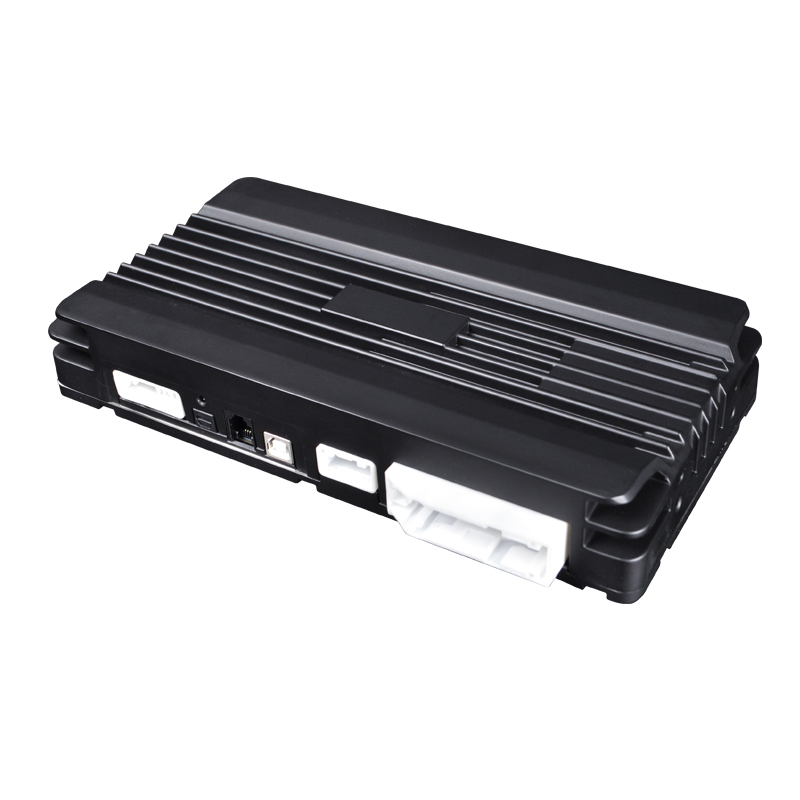

12 CH DSP AMPLIFIER

Upgrading Version for Mark Levision Amplifier


-   Similar appearance with Makr Levision Amplifier

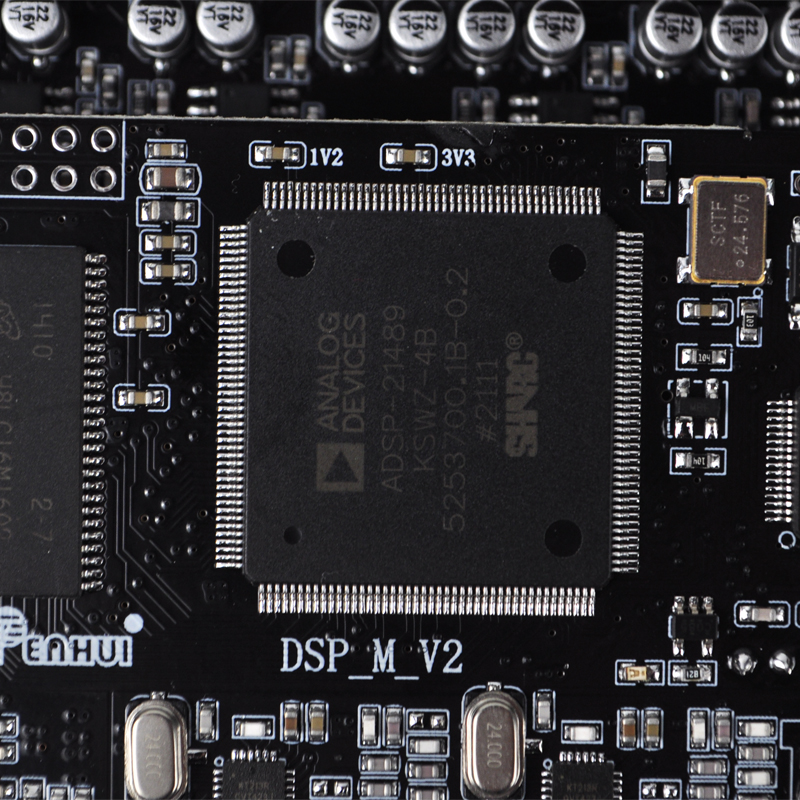

-   Built in12CH DSP ( ADSP-21489 Chip)

-   Supporting 5.1 CH Decoder

-   Supporting AC-3 DTS Decoder

-   Supporting Dolby Surround Audio

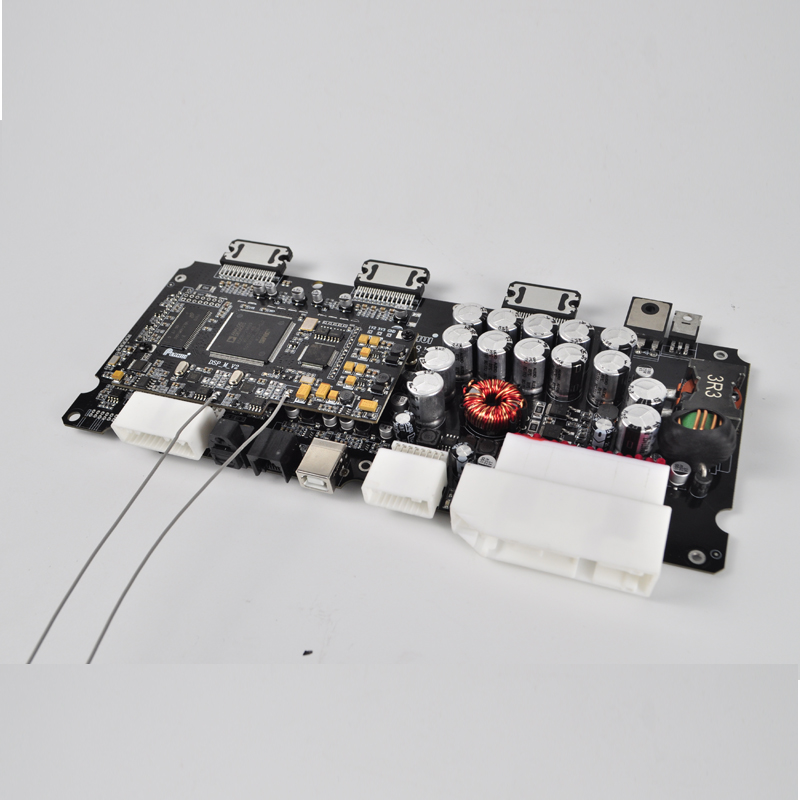

-   Analogue Amplifier (TDA-7850) with Power Magnifier electronics Circuit ( upgrade the Voltage from 12 V to 17V )

-   Pluging play with the car with original Mark levision Amplifier

-   Supporting Ie Bus (SWC)


Supporting Cars :


-  Low- Middle Match Car ( the car with original Mark Levision amplifier , the amplifier is not optical signal ) , then pluging -play

-  High-Top Match Car  (the car with original Mark Levision optical amplifier ) , then need change the Car Screen at the same time ) , pluging play with the original Car ;

-  Car without the original Amplifier , then need match the Speakers cables together )

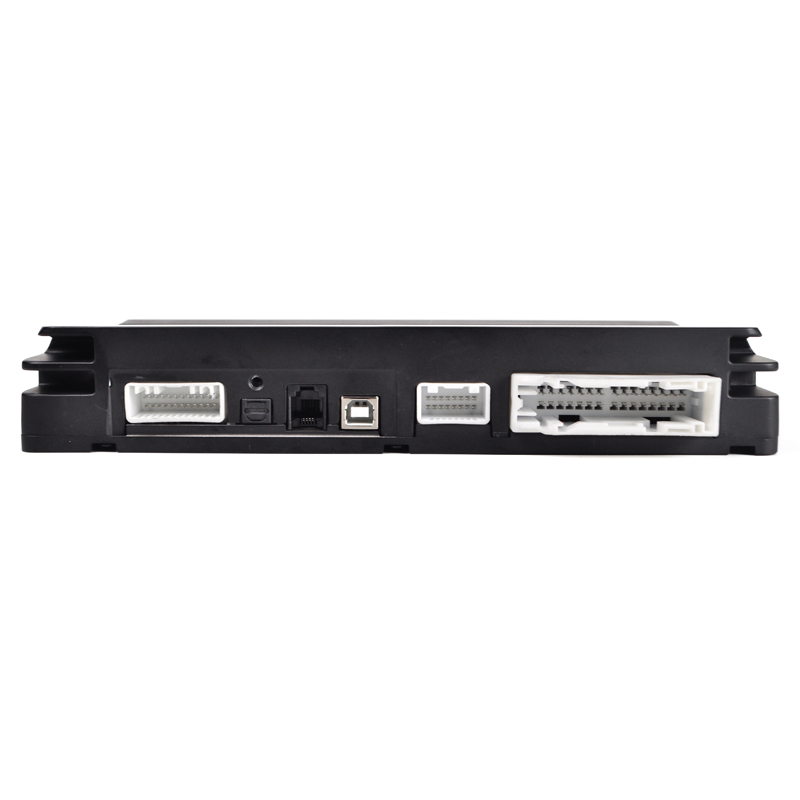

Input                                                                  Optical input  & Differential Input

Output                                                        Pluging Play with the original car

Output Power Max.

-@ 4Ohms                                                    64 Watts per channel

-@ 2Ohms                                                    80 Watts per Channel

Output Voltage RCA/Cinch                              6Volts RMS

Frequency Response                                      20Hz- 22,000Hz

DSP Resolution                                              32/40 Bit Floating Point

DSP POWER:                                                 450 MHz (1.2 billion MAC opetation /second)

Sampleing Rate                                              96kHz

DSP type                                                       Audio signal Processor

Signal Converters                                            A/D: TI              D/A:TI

Signal -to -noise ratio digital input                        112dB (A-weighted )

Signal to -noise ratio analogue input                    107dB ( A-weighted)

Distortion (THD)                                                   < 0.006%

Dampling Factor                                                   > 100

Operating Voltage                                                9.5-16 VOLTS

Quicscent Current                                               180mA

Fuse                                                                    35A
