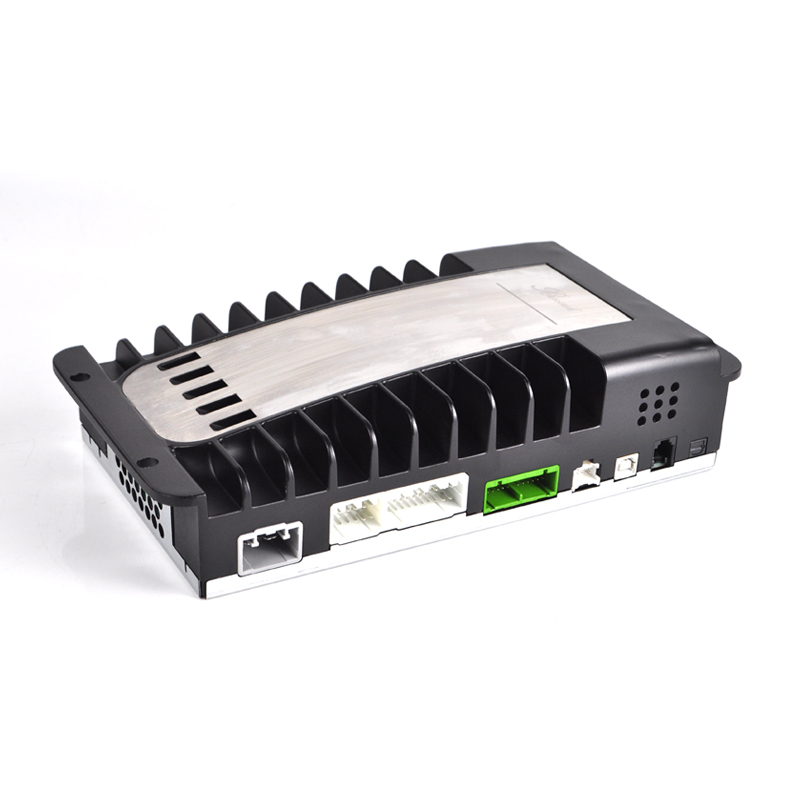

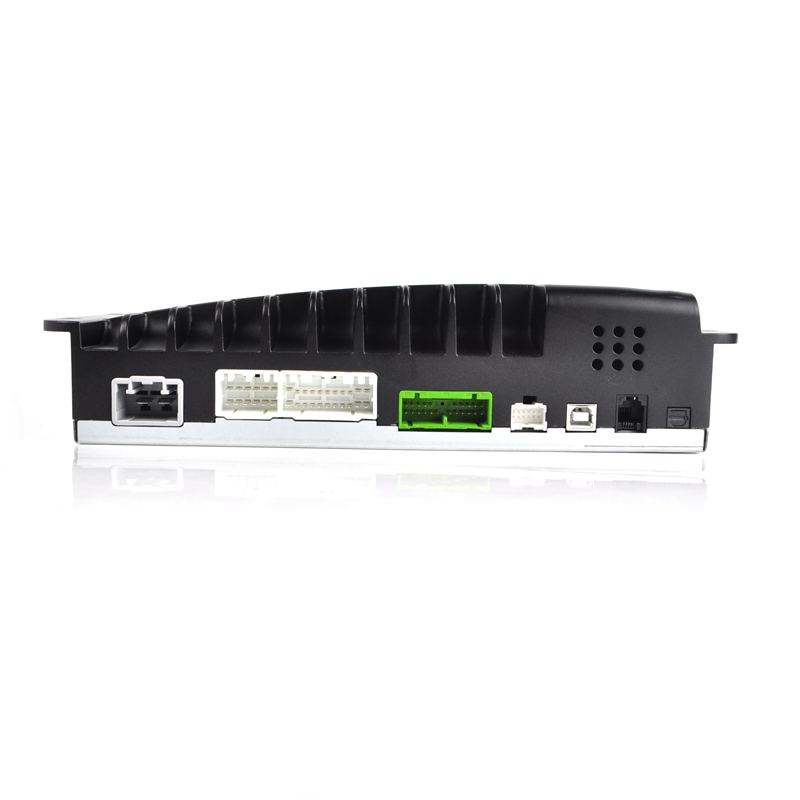

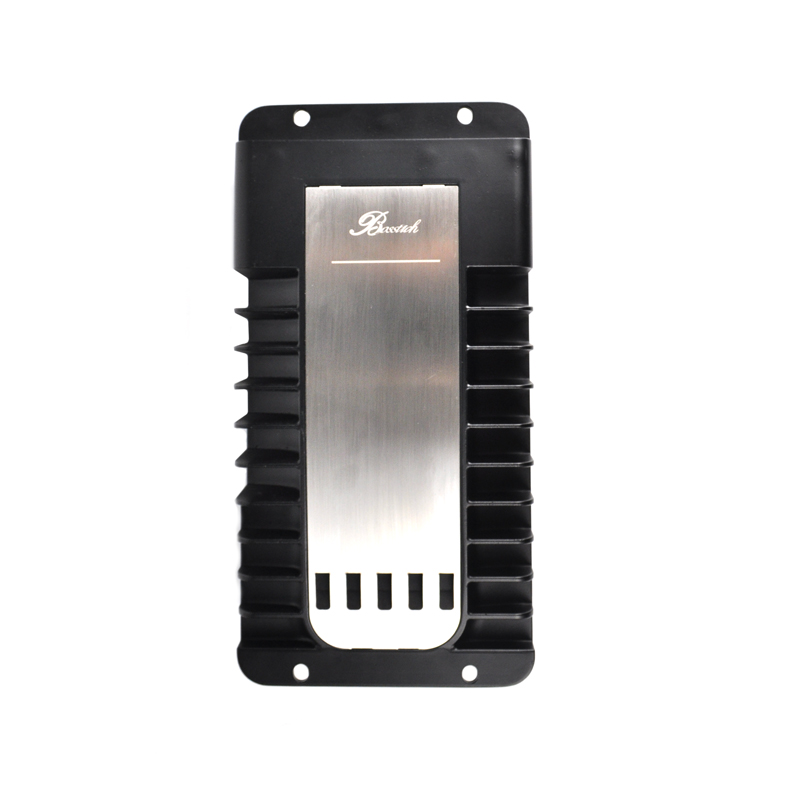

16CH DSP Amplifier Special for Maserati

- Pluging play with Maserati Cars

- Supporting the original IE Bus

- Supporting the input of the original Audio

- Supporting the input of optical

DSP Amplifier

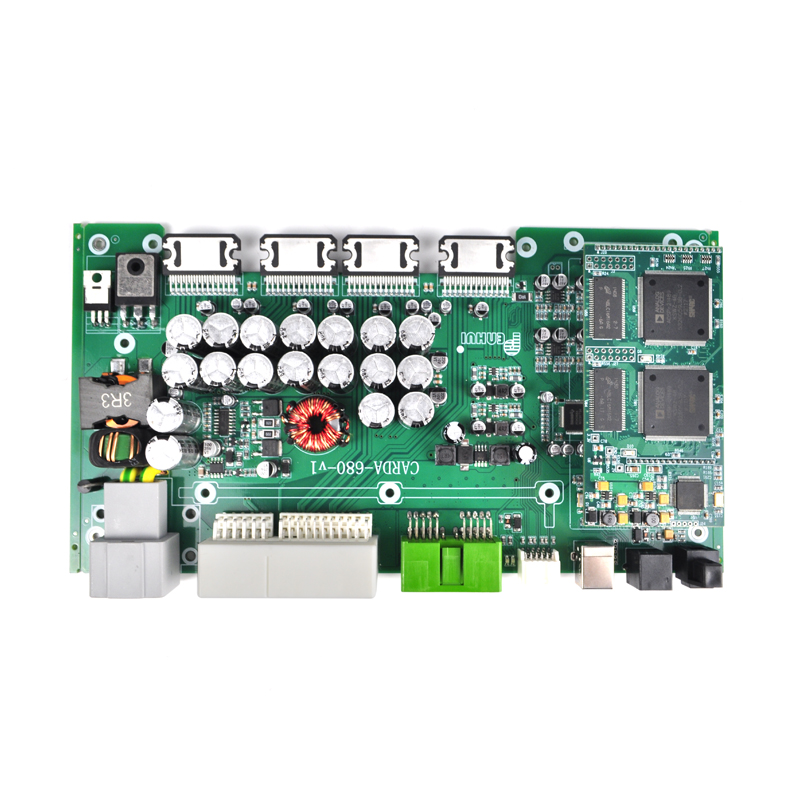

DSP Chip：ADSP-21489 x2 pcs ,  8 CH / pc

- 450MHZ Core Clock Speed

- 5Mbits of on- chip RAM

- FIR, IIR and FFT accelerators

- 16-Bit Wide SDR SDRAM external memory interface

- Digital Applications Interface (DAI )enabling user-definable access to peripherals including an S/P DIF Tx/Rx, and 8-channel asynchronous sample rate converter

- Fully enhanced DMA engine including scatter /gather  DMA delay line DMA

- 8 serial ports( SPORTs) supporting 12S, left- justified sample pair, DSP Serial and TDM modes

- 2 SPIPcompatible ports supporting master and slave modes

- UART and Two- Wire Interface

- 16 Pulse Width Modulation (PWM)channels

-3 full-Features timers

-176 ID LQFP EPAD, 100ID LQFP , EPAD and 88Id LfCSP package options

-Commercial and industrial temperature ranges
